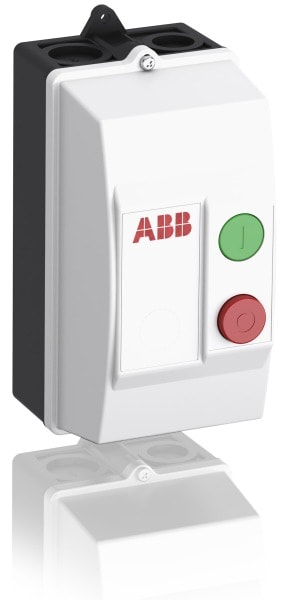

ABB - DRAF09 250-500V50/60Hz Contactor Starter

The DRAF09-14U is an enclosed Direct-On-Line starter with an AF contactor used for controlling 3-phase asynchronous motors up to 690 V AC.Each starter is delivered assembled and wired. It contains:• IP66 and type 4X plastic enclosure with double insulation, equiped with:- 1 green flush "I" ON button and 1 red protruding "O" OFF/RESET button- 4 cable inlets and outlets via knockouts: Inch cable inlet/outlet suitable for UL starter types.• 1 AF09-30-10-14 3-pole contactor with holding contact• DRAF..U with separate supply for UL starters type: AC control supply: 250-500V50/60HZ• 1 CB5-10 start contact block• 1 PE and 1 neutral terminal• TF42 thermal overload relay to be ordered separately and chosen according to motor's nominal current.
